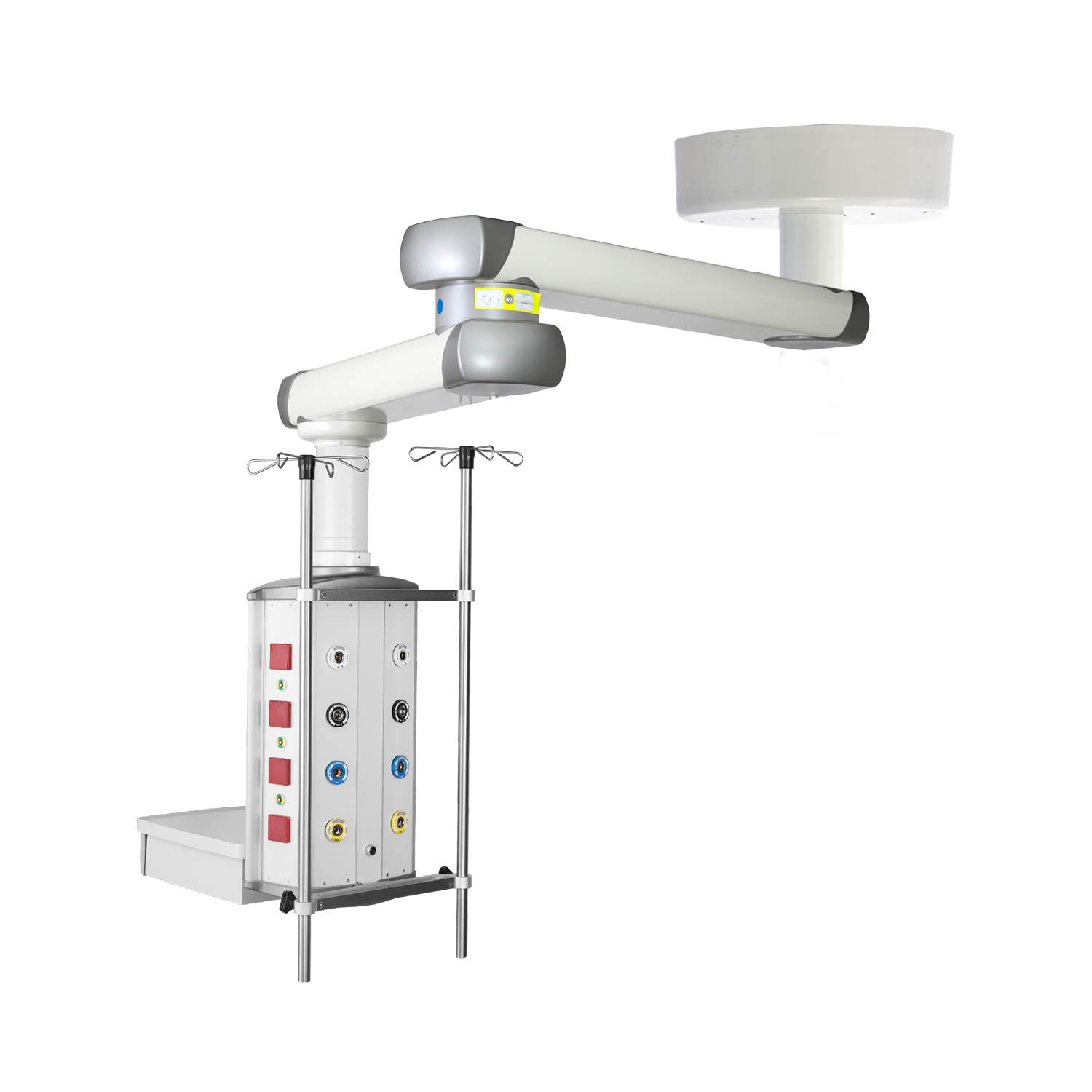

Robust Double-Arm Pendant System FX40.20D
Equipped with motorized functionality, this pendant system improves accessibility and enables precise transport and positioning of medical equipment. Its durable arm ensures high load capacity and dependable support in demanding clinical environments.
Medical pendant systems are advanced solutions engineered to optimize clinical workflows, enhance patient safety, and maintain the highest hygiene standards in operating rooms and intensive care units.
Our experts are ready to offer you the most suitable solutions.
General Features
- High load capacity: Easily supports multiple medical devices such as monitors and infusion pumps
- Double joint flexibility: Offers greater reach and flexibility for easy positioning
- Cost-efficient: No motorized components, provides high performance at a lower price
- Safe and stable use: Secures heavy equipment and reduces the risk of instability
Technical Specifications
| Technical Specifications | |
|---|---|
| Model | FX40.15M |
| Department | OR |
| Arm Type | Single Arm |
| Arm length | 1000/800 |
| Total length in mm | 1800 |
| Length up to | 2600 |
| Load capacity in kg | 150 |
| Load capacity with E-brake in kg | 530 |
| Vertical load Newton | 2518 |
| Load capacity in lbs | 418 |
| Brake System | Pneumatic Brake |
| Magnetic E-Brake | Yes |
| Rotation angle ceiling | 340° |
| Intermediate Bearing | 340° |
| Rotation Angle Telescopic Tube | 340° |
| Height Adjustment | 820 mm (20° upward, 40° downward movement) The upper limit can be restricted |
| Color | |
| Electrical protection class according to IEC 60601-1 | Class 1 |
| Classification according to 93/42 EU and 2017/745 EU | Class 1 |
| IP classification | IP 20 |
