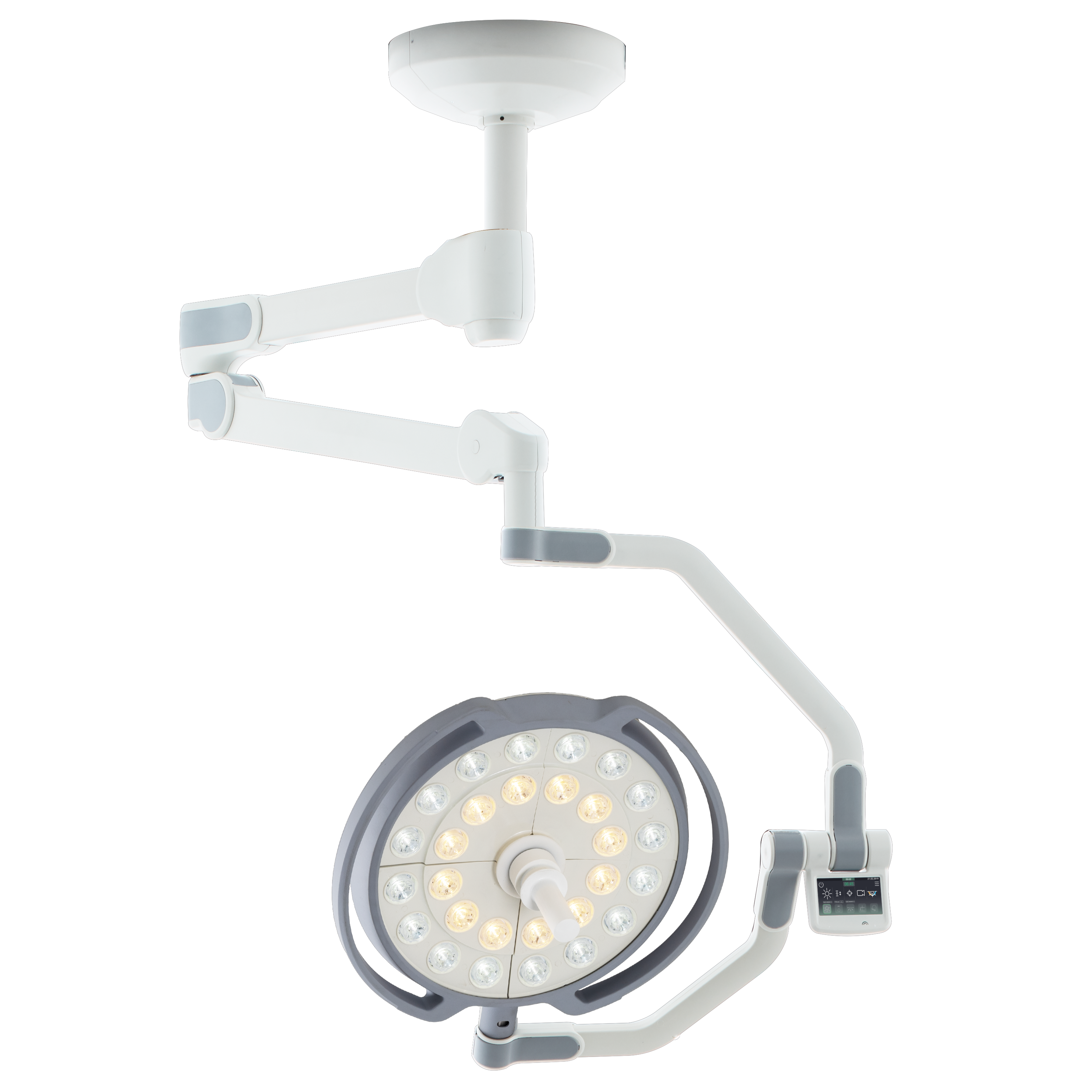

Single-Head Surgical Light LD10.01S

INSPITAL LED surgical lights meet all clinical lighting requirements for modern operating rooms. Featuring the latest generation of LED technology, they enable surgeons to clearly visualize and operate within the surgical field. INSPITAL lights can be configured for ORs of any size — including large hybrid operating rooms — and are available in a wide range of models and configurations.

Our experts are ready to offer you the most suitable solutions.

SKU: LD10.01S
  • Surgical Light, Single Head
  • Minor Surgical Procedures
  • Examination and Treatment Rooms
  • Space-Saving Design
Technical Specifications
Max. illumination intensity at 1 m: 120.000 Lux
Diameter of the light head: Ø490 mm
Color Temperature: 3000 K - 5000 K
Color Rendering Index, Ra CRI: 96%
Dimming Range: 1 - 100%
Light field diameter d10: 25 - 27 cm/9.45”-10.63”
Light field diameter d50: 12 - 14 cm/4.7”-5.5”
Number of LED modules: 28
LED lifespan: > 60,000 h
Turbulence level (standard value max. 37.5%): 25%
Depth of light volume L1 + L2 at 20%: 185 cm / 72.8”
Depth of light volume L1 + L2 at 60%: 92 cm/36.2”
IP protection IP43
Irradiance at nominal illumination intensity: 430 W / m²
Additional options: Wall Control Panel, UPS, Camera
